Enhanced CD8+ T-cell response in mice immunized with NS1-truncated influenza virus

Full Text:


Influenza viruses with truncated NS1 protein stimulate a more intensive innate immune response compared to their wild type counterparts. Here, we investigate how the shortening of the NS1 protein influence the immunogenicity of the conserved T-cellular epitopes of influenza virus. Using flow cytometry, we showed that the intraperitoneal immunization of mice with influenza virus encoding 124 N-terminal amino acid residues of the NS1 protein (A/PR8/NS124) induced higher levels of CD8+ T-cells recognizing immunodominant (NP366-374) and sub-immunodominant (NP161-175, NP196-210, HA323-337, HA474-483, NA427-433) epitopes compared to immunization with the virus expressing full-length NS1 (A/PR8/full NS). It is noteworthy that the response to the immunodominant influenza epitope NP366-374 was achieved with the lower immunization dose of A/PR8/NS124 virus compared to the reference wild type strain. Despite the fact that polyfunctional CD8+ effector memory T-lymphocytes simultaneously producing two (IFNγ and TNFα) or three (IFNγ, IL2, and TNFα) cytokines prevailed in the immune response to both viruses, the relative number of such T-cells was higher in A/PR8/NS124-immunized mice. Furthermore, we have found that polyfunctional populations of lymphocytes generated upon the immunization of mice with the mutant virus demonstrated an increased capacity to produce IFNγ compared to the corresponding populations derived from the A/PR8/full NS-immunized mice. Therefore, immunization with the attenuated influenza virus encoding truncated NS1 protein ensures a more potent CD8+ T-cell immune response.

For citations:

Vasilyev K.A., Shurygina A.S., Stukova M.A., Egorov A.Y. Enhanced CD8+ T-cell response in mice immunized with NS1-truncated influenza virus. Microbiology Independent Research Journal (MIR Journal). 2020;7(1):24-33.


According to meta-analysis [1], the effectiveness of modern influenza vaccines in people aged 18-65 years is about 60%. Inactivated vaccines mostly induce a humoral immune response and effective protection only when the antigenic structure of surface influenza proteins in vaccine strains coincides with the antigenic structure of surface proteins of circulating viruses [2]. Live attenuated influenza vaccines (LAIVs) induce not only humoral but also mucosal and T-cellular immunity. The ability of LAIV strains to replicate in the upper respiratory tract provides a way to trigger the MHC-I/II-dependent presentation of conserved epitopes to CD8+ and CD4+ T-cells. It has been shown in recent studies that circulating influenza viruses of types A, B, and C share common CD8+ T-cellular epitopes that could induce the cross-protective immune response [3]. Memory CD8+ T-cells directed against these universal epitopes were found in the blood and lungs of healthy humans [3]. Despite the existence of such highly conserved cross-protective influenza epitopes, the T-cellular immune response induced by LAIVs is insufficient to provide a broad cross-protection [4]. It is noteworthy that all of the licensed LAIVs contain viruses comprising active NS1 protein which inhibits the host immune response by interacting with the components of the interferon (IFN) signaling system [5, 6]. Therefore, LAIVs can prevent the formation of an immune response to the weakly immunogenic conserved epitopes of influenza proteins and, consequently, suppress the ability of the vaccine strain to provide cross-protection against a broad range of influenza viruses. The development of approaches to increase the immunogenicity of conserved influenza epitopes can be a promising strategy for creating a new generation of live influenza vaccines with enhanced cross-protection activity. It is known that the abrogation of the immunosuppressive activity of NS1 protein by the truncation of its effector domain increases the innate cytokine immune response to influenza virus and reduces its reproductive activity in the respiratory tract of the host organism [7]. It is also known that immunization with live influenza virus with a modified NS gene protects mice when challenged with heterologous strains of the same virus subtype [8, 9].

Previously, we showed that the influenza virus encoding NS1 protein, when shortened to 124 amino acids (aa), induced higher proinflammatory cytokine production and enhanced innate immune cell stimulation compared to influenza A/PR8/34 wild type virus after the intraperitoneal (i.p.) immunization of mice [10]. Here, we investigate whether the enhanced ability of the influenza virus with truncated NS1 protein to activate the innate immune system could be translated into a more efficient adaptive T-cellular immune response against immunodominant and sub-immunodominant influenza epitopes. Since the importance of polyfunctional T-lymphocytes in mediating the protective immune response against different bacteria and viruses is well recognized [11–15], we analyzed the level and functional activity of the variety of T-cells producing IFNγ, IL2, and TNFα. To equalize the antigenic load of two viruses with different reproduction activity in the respiratory tract of immunized mice, we used the i.p. route of immunization, as it was previously shown that influenza virus does not replicate in the peritoneal cavity but retains the ability to induce a humoral and T-cellular immune response [16].

Materials and Methods


Two strains based on the influenza A/Puerto Rico/8/1934 (H1N1) virus were used for the immunization of mice: (1) the virus, encoding full-length NS1 protein (A/PR8/full NS) and (2) A/PR8/NS124 strain, encoding shortened to 124 aa NS1 protein. The strains were obtained by the method of reverse genetics [17] assembled in developing chicken embryos and purified by fractionation in a sucrose density gradient according to the standard procedure.

Laboratory animals

This study was performed in C57BL/6 female mice obtained from the Biomedical Science Center (Stolbovaya, Russia). All of the experiments with mice in this research study were conducted according to the guidelines for care and work with laboratory animals [18].


The A/PR8/full NS and A/PR8/NS124 viruses were titrated on Vero cells to equalize the immunization dose. A limiting dilution assay was performed in 96-well culture plates (Nunc, Denmark) by the addition of 100 µl of prepared dilutions of the virus-containing material in OptiPRO SFM (Invitrogen) with 2% L-glutamine (Invitrogen) and 5 µg/ml of trypsin (Sigma-Aldrich) into the wells and subsequent incubation for 5 days at 34℃ and 5% CO2. The results were evaluated visually by the estimation of the cytopathic effect. Hemagglutination assay (using a 0.5% suspension of chicken red blood cells) was used as the control. The calculation of virus 50% tissue culture infectious dose (TCID50) was performed using the Reed and Munch method [19]; the viral titer was expressed as log10TCID50/ml. In order to assess the immunogenicity of strains, mice were immunized i.p. with 4.0 or 7.0 log10 TCID50/ml of each virus (500 µl of a virus suspension in sodium phosphate buffer (PBS, Biolot)). The control group received PBS in an equivalent volume. Each group included 5 mice. In total, 45 experimental animals were used in the present study.

Flow cytometry

T-cellular immune response was evaluated in splenocytes obtained on the 8th and 21st days post-immunization (d.p.i.). The spleens were manually homogenized using pestle homogenizers (Eppendorf, Germany). Red blood cells were lysed using the RBC Lysis Buffer reagent (Biolegend, USA). Cells were cultivated in RPMI1640 media (Gibco), containing 10% of fetal bovine serum (FBS, Gibco) and 1% of penicillin/streptomycin solution (Gibco). To stimulate cytokine production, splenocytes were incubated with NP366-374, NP161-175, NP196-210, HA474-483, HA323-337, or NA427-433 peptides and brefeldin A (Biolegend) for 6 h at 37℃ and 5% CO2. Epitopes were selected using the IEDB database ( Peptides were synthesized by Verta Ltd. (St. Petersburg, Russia). The sample of each peptide (10 mg) was dissolved in DPBS (Biolot, Russia) at 10 mg/ml and stored in small aliquots at −20℃. The purity of the peptides was >90% as determined by high-performance liquid chromatography. After the stimulation, the cells were stained with CD8-PE/Cy7, CD4-PerCP-Cy5.5, CD44-BV510, CD62L-APC/Cy7, IFNγ-FITC, TNFα-BV421, and IL2-PE antibodies using the Fixation and Permeabilization Solution reagent kit (BD Biosciences, USA) according to the manufacturer’s instructions. Zombie Red viability marker (BioLegend, USA) was used to identify the dead cells. True Stain reagent, containing antibodies to CD16/CD32, was used to block non-specific antibody binding (BioLegend, USA). The data were collected on a BD FACSCanto II flow cytometer (BD Biosciences, USA). The results were analyzed using the Kaluza Analysis 1.5a program (Beckman Coulter, USA). In order to estimate the increase in the cytokine production levels upon the peptide stimulation, the background values obtained from the non-stimulated cells were subtracted from the corresponding values of stimulated samples before the statistical analysis.

Statistical analysis

RStudio Desktop 1.0.153 (RStudio Inc, USA) was used for statistical data analysis. The Dunnet test was used to compare several experimental groups with one control group. A comparison of two experimental groups was carried out using a Student’s t-test. Multiple comparisons of several groups were performed using univariate analysis of variance (ANOVA) followed by a pairwise comparison of groups using the Tukey criterion. Cellular polyfunctionality index (PI) was calculated using the formula:  (where n is the number of analyzed functions (n=3 for IFNγ, IL2, and TNFα) and F is the percentage of cells performing i functions) as described previously [14, 20]. Integrated mean fluorescence intensity (iMFI) was calculated by multiplying the frequency of the particular population by the MFI of IFNγ, IL2, or TNFα of this population.


Selection of epitopes for T-cell immune response analysis

The description of the sequence and the conservancy of the selected for this study epitopes are shown in Table 1. These peptides allowed us to evaluate the effect of NS1 protein modification on the immunogenicity of the immunodominant and sub-immunodominant epitopes from the internal (NP) and surface (HA, NA) proteins of influenza virus.

Table 1. T-cell epitopes of influenza virus






1.8% (63 / 3448)



98.9% (3411 / 3448)



67.28% (2320 / 3448)



41.9% (4174 / 9949)



47.7% (4750 / 9949)



42.2% (3288 / 7776)

The level of conservancy for each epitope was determined by calculating the relative number of unique sequences of the corresponding protein of influenza A virus containing a given epitope. The sequences presented in the Influenza Research Database were used for the conservancy analysis. Data on the immunogenicity of epitopes were obtained from publications that compare the immune response to different epitopes of the influenza virus [21-26].

A/PR8/NS124 mutant virus induces CD8+ response at a lower dose of immunization

In order to determine the optimal immunizing dose, C57BL/6 mice were injected i.p. with A/PR8/full NS and A/PR8/NS124 influenza viruses at a dose of 4.0 and 7.0 log TCID50/mouse. The antigen-specific T-cellular response to immunodominant NP366-374 CD8+ epitope was evaluated in spleens 8 d.p.i. Cells were stimulated in vitro with this peptide for 6 h after which the levels of IFNγ-, IL2-, and TNFα-producing CD8+CD44+CD62Leffector memory (CD8+ EM) T-cells were estimated by flow cytometry.

The immune response to both strains was dose-depen­dent. After the immunization of mice with A/PR8/NS124 at 4.0 log10 TCID50/mouse, 2.88±2.01% of CD8+ effector T-lymphocytes produced cytokines in response to the in vitro stimulation. On the other hand, after the immunization with A/PR8/full NS at the same dose, the number of antigen specific cells was 0.34±0.10% while in the control group it was 0.26±0.16%. After immunization with 7.0 log10 TCID50/mouse of each virus, the level of antigen-specific CD8+ EM T-lymphocytes was 15.07±2.77% of total CD8+ EM T-cells in the full NS group and 26.86±1.72% in the NS124 group (p=0.013, Fig. 1). Therefore, A/PR8/NS124 virus was capable of inducing CD8+ T-cell response to NP366-374 epitope at a lower dose than the influenza strain with the full-length NS1 protein and was more immunogenic at a dose that induces a substantial immune response to both tested viruses.

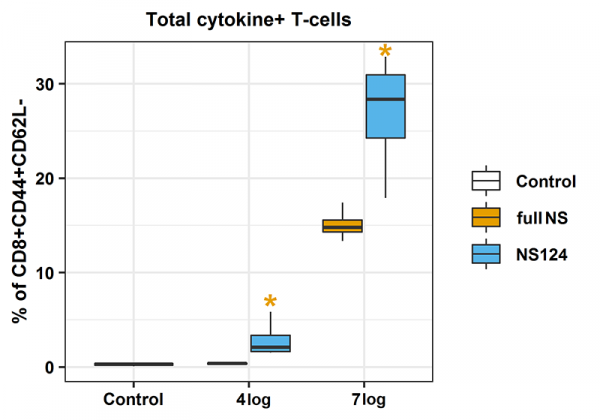

Fig. 1.  CD8+ T-cellular immune response to different doses of A/PR8/full NS or A/PR8/NS124 influenza strains. The total levels of cytokine-producing effector memory CD8+CD44+CD62L- T-lymphocytes after 6 h of in vitro stimulation of splenocytes of C57BL/6 mice with the NP366-374 peptide. Groups were compared using the Student’s t-test (*: p<0.05, n=5).

The shortening of NS1 protein enhances the immunogenicity of sub-immunodominant CD8+ T-cell epitopes

Next, we assessed the immunogenicity of sub-immunodominant T-cell epitopes using the highest immunizing dose of 7.0 log10 TCID50/mouse. According to Cox et al. [15], the peak of CD8+ T-cell response occurs 8-10 days after the immunization, followed by a decrease in the number of antigen-specific T-cells. At the same time, the spectrum of epitopes inducing adaptive immune response shrinks at later stages after immunization [27]. Considering these data, we estimated the immune response to influenza epitopes on the 8th and 21st days after the i.p. immunization.

Fig. 2 shows the levels of cytokine-producing EM (CD44+CD62L-) CD8+ T-cells. Eight days after immunization, A/PR8/NS124 virus induced a higher CD8+ T-cell immune response to NP and HA than A/PR8/full NS while the immune response to NA protein epitopes was comparable (Fig. 2A). The most pronounced differences in the total amount of cytokine-producing cells between full NS and NS124 groups were obtained upon stimulation with immunodominant NP366-374 epitope. However, stimulation with HA474-483, NA427-433, and NP196-210 peptides, representing sub-immunodominant epitopes, also significantly increased the immunogenicity of A/PR8/NS124 virus: for NA427-433 10.7±0.8% of CD8+ EM T-cells in NS124 group versus 8.4±1.9% in full NS group (p=0.05); for HA474-483 9.9±0.9% of CD8+ EM T-cells in NS124 group versus 7.2±1.8% in full NS group (p=0.03); and for NP196-210 11.6±1.7% in NS124 group versus 8.3±2.0% in full NS group (p=0.05) (Fig. 2A). In vitro stimulation with either of the studied epitopes did not result in the induction of the significant CD4+ T-cellular response (data not shown).

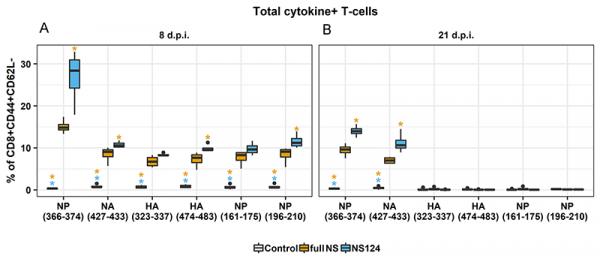

Fig. 2. T-cellular immune response to different epitopes of influenza virus in the spleens of C57BL/6 mice on 8th (A) and 21th (B) days after i.p. immunization with А/PR8/full NS and А/PR8/NS124 influenza strains. Box-plots represent the total levels of cytokine-producing CD8+ EM T-lymphocytes after 6 h of in vitro stimulation of splenocytes with peptides corresponding to sub-immunodominant conservative influenza epitopes. Groups were compared using ANOVA followed by a Tukey’s post-hoc comparison. Significant differences between groups (p<0.05, n=5) are marked by *.

On the 21st d.p.i., only two epitopes (NP366-374 and NA427-433) retained the ability to induce cytokine production in CD8+ EM T-cells upon in vitro stimulation in both A/PR8/full NS and A/PR8/NS124-immunized groups (Fig.2B). The proportion of cytokine-producing T-cells was 9.4±1.5% and 14.0±1.3% for NP366-374 and 7.0±0.8% and 11.1±2.4% for NA427-433 in full NS and NS124 groups, respectively (p=0.003, p=0.01). Therefore, the total CD8+ EM T-cellular immune response was higher in the NS124 group compared to A/PR8/full NS group on the 21st d.p.i.

The percentage of distinct cytokine-producing populations of the total amount of CD8+ EM T-cells or of the total number of cytokine-producing CD8+ EM T-cells on the 8th and 21st d.p.i. in full NS and NS124 groups is shown in Fig. 3. Upon stimulation with NP366-374 peptide, the majority of antigen-specific T-cells in both full NS and NS124 groups were polyfunctional CD8+ T-cells (IFNγ+IL2+TNFα+). The second dominant population of antigen-specific T-lymphocytes comprised double cytokine-producers (IFNγ+IL2-TNFα+). The rest (approx. 25% of the total cytokine-producing T-cells in both groups) was represented by the minor populations of single IFNγ-, IL2-, or TNFα-producers or double-positive T-cells (IFNγ-IL2+TNFα+ and IFNγ+IL2+TNFα-). The peptides corresponding to the sub-immunodominant influenza epitopes, as well as NP366-374 epitope, induced a higher level of polyfunctional IFNγ+IL2-TNFα+ and IFNγ+IL2+TNFα+ CD8+ T-lymphocytes in the NS124 group compared to the full NS group on the 8th d.p.i. In contrast to NP366-374 speci­fic response, all of the evaluated sub-immunodomi­nant epitopes induced an increased level of IFNγ+IL2-TNFα- single-producers in the NS124 group. At the same time, A/PR8/full NS strain induced a higher proportion of IFNγ-IL2-TNFα+ T-cells. The stimulation of CD8EM T‑cells with HA474-483 versus NP161-175 revealed significant differences between the experimental groups in the amount of TNFα single-producers (full NS: 0.8±0.2%, NS124: 0.4±0.3% (p=0.04) after HA474-483 stimulation; 1.1±0.4%, 0.7±0.3% (p= 0.05) correspondingly after NP161-175 stimulation).

Fig. 3. Relative content of different cytokine-producing populations of CD8+ EM T-lymphocytes on the 8th and 21st days after the i.p. immunization with А/PR8/full NS and А/PR8/NS124 influenza strains. Radar charts represent the differences in the mean values of epitope-specific immune response of each population of cytokine-producing CD8+ EM T-cells of immunized mice. Each point is located in the range from 0 to the maximal mean value of the corresponding population in full NS or NS124 group. The pie charts represent the percentage of cells, producing any combination of IFNγ, IL2, or TNFα cytokines in the total cytokine-producing CD8+ EM T-cell subset. (*: p<0.05, Student’s t-test, n=5).

The contribution of polyfunctional T-lymphocytes (IFNγ+IL2-TNFα+ and IFNγ+IL2+TNFα+) to the cumulative cytokine response increased on the 21st d.p.i. Only a minor part of the total influenza-specific cells was represented by IFNγ single producers in both full NS and NS124 groups. The IFNγ+IL2+TNFα- CD8EM T-cells were observed only in A/PR8/NS124-immunized animals. A statistically significant difference in the proportion of IFNγ+IL2+TNFα+ T-cells was found between the full NS and NS124 groups after stimulation with NP366-374 peptide (p=0.0003). The immune response to NA427-433 epitope was characterized by the formation of the higher amount of IFNγ+IL2-TNFα+ and IFNγ+IL2+TNFα+ T-lymphocytes in the NS124 group (p=0.02 and p=0.01, respectively).

Therefore, the immune response to the sub-immunodominant epitopes of A/PR8/NS124 influenza strain was characterized by a higher level of total cytokine-producing T-cells and an increase of the proportion of minor IFNγ+IL2+TNFαpopulation of CD8+ EM T-lymphocytes compared to A/PR8/full NS virus on the 8th and 21st d.p.i. However, the number of epitopes inducing the CD8+ T-cell response simultaneously decreased in both groups on the 21st d.p.i.

The A/PR8/NS124 mutant virus promotes the appearance of polyfunctional CD8+ lymphocytes with enhanced IFNγ expression

In order to estimate the difference in the functional activity of cytokine-producing T-cell populations in mice upon immunization with A/PR8/full NS or A/PR8/NS124 viruses, we analyzed the expression levels (mean fluorescence intensity, MFI) of IFNγ, IL2, and TNFα in different populations of cytokine-producing T-cells on the 8th and 21st d.p.i. The distribution of CD8+ T-cells from A/PR8/NS124-immunized mice (8th d.p.i.) by their fluorescence intensity of IFNγ, IL2, and TNFα corresponds to their expression levels as shown in Fig. 4A. The polyfunctional IFNγ+IL2-TNFα+ and IFNγ+IL2+TNFα+ subpopulations were characterized by the highest cytokine-producing activity among all antigen-specific T-lymphocytes. In particular, IFNγ+IL2+TNFα+ triple-producers secreted more IFNγ, IL2, and TNFα than their bifunctional or monofunctional analogs. IFNγ+IL2-TNFα+ T-cells produced higher levels of IFNγ and TNFα than the single-producers expressing these cytokines (Fig. 4A). The similar fluorescence intensity (FI) distributions were obtained for A/PR8/full NS-immunized animals (data not shown). These results underline the dominance of polyfunctional T-cells in the mediation of CD8+ T-cell cytokine response after i.p. immunization regardless of NS1 functionality.

Fig. 4. IFNγ expression level in IFNγ+IL2-TNFα+ and IFNγ+IL2+TNFα+ cytokine-producing populations of CD8+ EM T-lymphocytes on 8th and 21st days after the i.p. immunization with А/PR8/full NS and А/PR8/NS124 influenza strains. (A) The distribution of fluorescence intensity of cytokine-producing cells from mice immunized with 7.0 log TCID50/mouse of the A/PR8/NS124 influenza strain. The density plots represent the differences in the cytokine expression level between the subsets of cytokine-producing cells. (B) IFNγ mean fluorescence intensity (MFI) values of the polyfunctional subpopulations after peptide stimulation were compared using the Student’s t-test (*: p<0.05, n=5).

Nevertheless, the comparison of the full NS and NS124 groups showed that A/PR8/NS124 virus induced higher levels of the IFNγ MFI in IFNγ+IL2-TNFα+ T-cells upon the stimulation with NP366-374 peptide (Fig. 4B). Similarly, NP161-175, NP196-210, HA323-337, and HA474-483 peptides induced higher values of IFNγ MFI in IFNγ+IL2+TNFαCD8+ EM T-cells in the NS124 group compared to the full NS group (p<0.05). No statistically significant differences between the experimental groups were found in the MFI expression levels of IL2 and TNFα (data not shown). The observed differences in the expression level of IFNγ in the polyfunctional T-lymphocytes remained during 21 days after the immunization. The expression level of IFNγ MFI of IFNγ+IL2-TNFα+ was higher in the NS124 group compared to the full NS group after the stimulation with NP366-374 (p<0.001)The NA427-433 peptide induced the enhanced level of the IFNγ MFI in the IFNγ+IL2+TNFα+ T-cells in the A/PR8/NS124-immunized animals (p=0.02).

Based on the foregoing data, we can conclude that i.p. administration of influenza A/PR8/NS124 virus not only stimulates a greater amount of antigen-specific CD8+ T-lymphocytes than the A/PR8/full NS strain, but it also ensures the formation of polyfunctional T-cells with the enhanced IFNγ -producing activity.


CD8 T-cell immune response to conserved antigens is essential for cross-protection against a broad variety of influenza viruses [3, 28]. T-lymphocytes recognize the linear (8-24 aa) epitopes of the internal influenza antigens [29, 30]. Unfortunately, the majority of the conserved influenza epitopes maintain low immunogenicity during the course of natural influenza infection and vaccination. Therefore, the development of new approaches for vaccination that will ensure cell-mediating immune responses is of great importance.

Adaptive T-cell immune response is strongly dependent on the cytokine milieu and activated antigen-presenting cells generated during the innate immune response. Previously, we showed that A/PR8/NS124 influenza virus injected i.p. induces the production of IFNβ at a 300 times higher level than the virus expressing full-length NS1 protein in the peritoneal washes as well as promotes the increased expression of co-stimulatory CD86-molecules participating in the T-cell differentiation process [10]. In this study, we estimated the effect of the modification of the NS1 protein on the immunogenicity of the immunodominant and sub-immunodominant epitopes of the internal and surface proteins of the influenza virus. It was shown that the lower immunization dose of A/PR8/NS124 is required for triggering the CD8+ response compared to NS1 competent virus. In addition, the NS1 mutant virus induced the formation of an increased number of antigen-specific effector CD8+ T­‑lymphocytes compared to the A/PR8/full NS strain at the highest immunization dose. The shortening of the NS1 protein resulted in the simultaneous enhancement of the immunogenicity of all the studied epitopes. This was reflected in the increased formation of polyfunctional CD8+ IFNγ+IL2-TNFα+ and IFNγ+IL2+TNFαT-lymphocytes and monofunctional IFNγ+IL2-TNFα- T-cells in mice immunized with A/PR8/NS124. Antigen-specific polyfunctional T-cells play a key role in providing protection against reinfection with different microbial and viral pathogens [11, 12, 31-34]. It is known that polyfunctional T-lymphocytes have a prolonged life cycle compared to monofunctional subpopulations and serve as a source for the formation of long-lived memory cells [33]. Polyfunctional T-lymphocytes also provide a significant contribution to the formation of the immune response to conserved influenza antigens and could be considered as effectors for cross-protection against antigenically divergent influenza viruses [34]. In the course of this research project, we only analyzed the cytokine-producing function of T-lymphocytes. However, from previous studies, it is known that the polyfunctional T-cells demonstrate more efficient killing capacities compared to their monofunctional analogs [35-38]. Therefore, we can speculate that influenza virus-specific polyfunctional T-cells generated in response to the A/PR8/NS124 immunization may be characterized by higher cytotoxic activity compared to the T-lymphocytes formed after the immunization with A/PR8/full NS strain. This hypothesis deserves further evaluation.

The published data on the role of TLR7/8 and RIG‑I signaling pathways in the activation of dendritic cells as well as the induction of T-lymphocytes maturation could be used for the explanation of the increased potency of A/PR8/NS124 virus in the induction of polyfunctional T‑cells. Mice with impaired RIG-I expression are characterized by the formation of the reduced number of polyfunctional T-lymphocytes in response to the immunization and weakened protection against heterologous strains of the influenza virus [39]. Considering that NS1 protein mediates its immunosuppressive function through direct interaction with RIG-I, it should be expected that the immunization of mice with influenza virus lacking the effector domain of NS1 protein would lead to the enhanced production of the polyfunctional T-lymphocytes. We found that IFNγ+IL2-TNFα+ and IFNγ+IL2+TNFαT-cells generated after immunization with the A/PR8/NS124 strain produced a higher amount of IFNγ compared to A/PR8/full NS-immunized mice. To compare the cumulative functional properties of influenza-specific T-cell immune response to A/PR8/full NS and A/PR8/NS124 strains after the i.p. immunization, we calculated an integrated MFI (iMFI) of IFNγ in predominant polyfunctional populations and cellular polyfunctionality index (PI) for each observation as was described previously [14, 20]. The results are presented in Supplementary Tables 2S and 3S. PI and iMFI reflect both the magnitude and quality of immune response. The higher values of these two parameters in the NS124 group compared to full NS group after the stimulation with HA474-483, HA323-337, NP366-374, and NP196-210 on the 8th d.p.i. and with NP366-374 and NA427-433 on the 21st d.p.i. showed that the shortening of NS1 protein leads to the increase in both the magnitude of T-cell immune response to influenza virus and the functional activity of antigen-specific T-lymphocytes. Since the goal of the present study was to compare the immunogenicity of the two viruses with different reproduction activity in the respiratory system, we analyzed only the systemic immune response to A/PR8/full NS and A/PR8/NS124 viruses after the i.p. immunization. However, growing literature evidence proves the importance of the local immune response to the influenza virus in the lung tissue for the mediation of heterologous protection. It was shown that the populations of CD69+CD103+ tissue resident memory CD4+ and CD8+ T-cells (Trm) play a critical role in local immune protection by means of the direct killing of infected cells [40, 41] and cytokine release [42], promoting the recruitment of the immune cells from the circulation and switching the state of the surrounding cells to non-permissive [43]. Trms are indispensable for providing optimal heterosubtypic immunity [44, 45]. Therefore, the vaccines that induce the formation of influenza virus-specific Trm cells in the lungs provide superior protection against heterologous influenza strains [46, 47]. Moreover, as it was shown by Zhao et al., Trm generated in lungs after intranasal vaccine administration were more protective against challenge with pathogenic human coronaviruses than those generated after systemic vaccination [48]. Given the obtained data, we could expect that live attenuated vaccines based on viruses with shortened NS1 protein will have higher potential in the induction of cross-reactive Trm compared to the existing LAIVs.

It should be noted that the inhibition of the immunosuppressive function of the NS1 protein did not prevent the loss of immunogenicity of several sub-immunodominant epitopes of influenza virus on the 21st d.p.i. The importance of the conserved low immunogenic epitopes for the formation of a cross-protective immune response is well known [3]. Therefore, the influenza viruses with the shortened NS1 protein could be considered as a tool for the creation of influenza virus vectors overexpressing important cross-protective epitope sequences from various genomic fragments. Such a strategy for vaccine development might solve the problem of losing the immunogenicity of conserved subdominant epitopes at the later stages after immunization.


1. Osterholm MT, Kelley NS, Sommer A, Belongia EA. Efficacy and effectiveness of influenza vaccines: a systematic review and meta-analysis. Lancet Infect Dis 2012; 12(1), 36-44. doi: 10.1016/S1473-3099(11)70295-X.

2. Ni Y, Guo J, Turner D, Tizard I. An Improved Inactivated Influenza Vaccine with Enhanced Cross Protection. Front Immunol 2018; 9, 1815. doi: 10.3389/fimmu.2018.01815.

3. Koutsakos M, Illing PT, Nguyen THO, Mifsud NA, Crawford JC, Rizzetto S, et al. Human CD8(+) T cell cross-reactivity across influenza A, B and C viruses. Nat Immunol 2019; 20(5), 613-25. doi: 10.1038/s41590-019-0320-6.

4. Ohmit SE, Victor JC, Rotthoff JR, Teich ER, Truscon RK, Baum LL, et al. Prevention of antigenically drifted influenza by inactivated and live attenuated vaccines. N Engl J Med 2006; 355(24), 2513-22. doi: 10.1056/NEJMoa061850.

5. Egorov A, Brandt S, Sereinig S, Romanova J, Ferko B, Katinger D, et al. Transfectant influenza A viruses with long deletions in the NS1 protein grow efficiently in Vero cells. J Virol 1998; 72(8), 6437-41. PubMed PMID: 9658085.

6. Ayllon J, Garcia-Sastre A. The NS1 protein: a multitasking virulence factor. Curr Top Microbiol Immunol 2015; 386, 73-107. doi: 10.1007/82_2014_400.

7. Ferko B, Stasakova J, Romanova J, Kittel C, Sereinig S, Katinger H, et al. Immunogenicity and protection efficacy of replication-deficient influenza A viruses with altered NS1 genes. J Virol 2004; 78(23), 13037- 45. doi: 10.1128/JVI.78.23.13037-13045.2004.

8. Romanova J, Krenn BM, Wolschek M, Ferko B, Romanovskaja-Romanko E, Morokutti A, et al. Preclinical evaluation of a replication-deficient intranasal DeltaNS1 H5N1 influenza vaccine. PLoS One 2009; 4(6), e5984.

9. Steel J, Lowen AC, Pena L, Angel M, Solorzano A, Albrecht R, et al. Live attenuated influenza viruses containing NS1 truncations as vaccine candidates against H5N1 highly pathogenic avian influenza. J Virol 2009; 83(4), 1742-53. doi: 10.1128/JVI.01920-08.

10. Vasilyev KA, Yukhneva MA, Shurygina A-PS, Stukova MA, Egorov AY. Enhancement of the immunogenicity of influenza A virus by the inhibition of immunosuppressive function of NS1 protein. MIR J 2018; 5(1), 48-58. doi: 10.18527/2500-2236-2018-5-1-48-58.

11. Kannanganat S, Ibegbu C, Chennareddi L, Robinson HL, Amara RR. Multiple-cytokine-producing antiviral CD4 T cells are functionally superior to single-cytokine-producing cells. J Virol 2007; 81(16), 8468-76. doi: 10.1128/JVI.00228-07.

12. Precopio ML, Betts MR, Parrino J, Price DA, Gostick E, Ambrozak DR, et al. Immunization with vaccinia virus induces polyfunctional and phenotypically distinctive CD8(+) T cell responses. J Exp Med 2007; 204(6), 1405-16. doi: 10.1084/jem.20062363.

13. Aagaard C, Hoang T, Dietrich J, Cardona PJ, Izzo A, Dolganov G, et al. A multistage tuberculosis vaccine that confers efficient protection before and after exposure. Nat Med 2011; 17(2), 189-94. doi: 10.1038/nm.2285.

14. Darrah PA, Patel DT, De Luca PM, Lindsay RW, Davey DF, Flynn BJ, et al. Multifunctional TH1 cells define a correlate of vaccine-mediated protection against Leishmania major. Nat Med 2007; 13(7), 843- 50. doi: 10.1038/nm1592.

15. Cox MA, Kahan SM, Zajac AJ. Anti-viral CD8 T cells and the cytokines that they love. Virology 2013; 435(1), 157-69. doi: 10.1016/j.virol.2012.09.012.

16. Reading PC, Whitney PG, Pickett DL, Tate MD, Brooks AG. Influenza viruses differ in ability to infect macrophages and to induce a local inflammatory response following intraperitoneal injection of mice. Immunol Cell Biol 2010; 88(6), 641-50. doi: 10.1038/icb.2010.11.

17. Salomon R, Hoffmann E, Webster RG. Inhibition of the cytokine response does not protect against lethal H5N1 influenza infection. Proc Natl Acad Sci U S A 2007; 104(30), 12479-81. doi: 10.1073/pnas.0705289104.

18. Guide for the care and use of laboratory animals, Eighth Edition. National Research Council, National Academies Press; 2010.

19. Reed LJ, Muench H. A simple method of estimating fifty per cent endpoints. Am J Epidemiol 1938; 27(3), 493-7. doi: 10.1093/oxfordjournals.aje.a118408.

20. Larsen M, Sauce D, Arnaud L, Fastenackels S, Appay V, Gorochov G. Evaluating cellular polyfunctionality with a novel polyfunctionality index. PLoS One 2012; 7(7), e42403. doi: 10.1371/journal.pone.0042403.

21. Gras S, Kedzierski L, Valkenburg SA, Laurie K, Liu YC, Denholm JT, et al. Cross-reactive CD8+ T-cell immunity between the pandemic H1N1-2009 and H1N1-1918 influenza A viruses. Proc Natl Acad Sci U S A 2010; 107(28), 12599-604. doi: 10.1073/pnas.1007270107.

22. Quinones-Parra S, Loh L, Brown LE, Kedzierska K, Valkenburg SA. Universal immunity to influenza must outwit immune evasion. Front Microbiol 2014; 5, 285. doi: 10.3389/fmicb.2014.00285.

23. Valkenburg SA, Gras S, Guillonneau C, La Gruta NL, Thomas PG, Purcell AW, et al. Protective efficacy of cross-reactive CD8+ T cells recognising mutant viral epitopes depends on peptide-MHC-I structural interactions and T cell activation threshold. PLoS Pathog 2010; 6(8), e1001039. doi: 10.1371/journal.ppat.1001039.

24. Chen L, Zanker D, Xiao K, Wu C, Zou Q, Chen W. Immunodominant CD4+ T-cell responses to influenza A virus in healthy individuals focus on matrix 1 and nucleoprotein. J Virol 2014; 88(20), 11760-73. doi: 10.1128/JVI.01631-14.

25. Crowe SR, Miller SC, Brown DM, Adams PS, Dutton RW, Harmsen AG, et al. Uneven distribution of MHC class II epitopes within the influenza virus. Vaccine 2006; 24(4), 457-67. doi: 10.1016/j.vaccine.2005.07.096.

26. Nayak JL, Richards KA, Chaves FA, Sant AJ. Analyses of the specificity of CD4 T cells during the primary immune response to influenza virus reveals dramatic MHC-linked asymmetries in reactivity to individual viral proteins. Viral Immunol 2010; 23(2), 169-80. doi: 10.1089/vim.2009.0099.

27. Yager EJ, Ahmed M, Lanzer K, Randall TD, Woodland DL, Blackman MA. Age-associated decline in T cell repertoire diversity leads to holes in the repertoire and impaired immunity to influenza virus. J Exp Med 2008; 205(3), 711-23. doi: 10.1084/jem.20071140.

28. Terajima M, Babon JA, Co MD, Ennis FA. Cross-reactive human B cell and T cell epitopes between influenza A and B viruses. Virol J 2013; 10, 244. doi: 10.1186/1743-422X-10-244.

29. Kees U, Kynast G, Weber E, Krammer PH. A method for testing the specificity of influenza A virus-reactive memory cytotoxic T lymphocyte (CTL) clones in limiting dilution cultures. J Immunol Methods 1984; 69(2), 215-27. doi: 10.1016/0022-1759(84)90320-x.

30. Zweerink HJ, Courtneidge SA, Skehel JJ, Crumpton MJ, Askonas BA. Cytotoxic T cells kill influenza virus infected cells but do not distinguish between serologically distinct type A viruses. Nature 1977; 267(5609), 354-6. doi: 10.1038/267354a0.

31. Kannanganat S, Kapogiannis BG, Ibegbu C, Chennareddi L, Goepfert P, Robinson HL, et al. Human immunodeficiency virus type 1 controllers but not noncontrollers maintain CD4 T cells coexpressing three cytokines. J Virol 2007; 81(21), 12071-6. Epub 2007/08/31. doi: 10.1128/JVI.01261-07.

32. Aagaard C, Hoang TT, Izzo A, Billeskov R, Troudt J, Arnett K, et al. Protection and polyfunctional T cells induced by Ag85B-TB10.4/IC31 against Mycobacterium tuberculosis is highly dependent on the antigen dose. PLoS One 2009; 4(6), e5930. doi: 10.1371/journal.pone.0005930.

33. Lindenstrom T, Agger EM, Korsholm KS, Darrah PA, Aagaard C, Seder RA, et al. Tuberculosis subunit vaccination provides long-term protective immunity characterized by multifunctional CD4 memory T cells. J Immunol 2009; 182(12), 8047-55. doi: 10.4049/jimmunol.0801592.

34. Trieu MC, Zhou F, Lartey SL, Sridhar S, Mjaaland S, Cox RJ. Augmented CD4(+) T-cell and humoral responses after repeated annual influenza vaccination with the same vaccine component A/H1N1pdm09 over 5 years. NPJ Vaccines 2018; 3, 37. doi: 10.1038/s41541-018-0069-1.

35. Seder RA, Darrah PA, Roederer M. T-cell quality in memory and protection: implications for vaccine design. Nat Rev Immunol 2008; 8(4), 247-58. doi: 10.1038/nri2274.

36. Betts MR, Nason MC, West SM, De Rosa SC, Migueles SA, Abraham J, et al. HIV nonprogressors preferentially maintain highly functional HIV-specific CD8+ T cells. Blood 2006; 107(12), 4781-9. doi: 10.1182/blood-2005-12-4818.

37. Sandberg JK, Fast NM, Nixon DF. Functional heterogeneity of cytokines and cytolytic effector molecules in human CD8+ T lymphocytes. J Immunol 2001; 167(1), 181-7. doi: 10.4049/jimmunol.167.1.181.

38. Lichterfeld M, Yu XG, Waring MT, Mui SK, Johnston MN, Cohen D, et al. HIV-1-specific cytotoxicity is preferentially mediated by a subset of CD8(+) T cells producing both interferon-gamma and tumor necrosis factor-alpha. Blood 2004; 104(2), 487-94. doi: 10.1182/blood-2003-12-4341.

39. Kandasamy M, Suryawanshi A, Tundup S, Perez JT, Schmolke M, Manicassamy S, et al. RIG-I Signaling Is Critical for Efficient Polyfunctional T Cell Responses during Influenza Virus Infection. PLoS Pathog 2016; 12(7), e1005754. doi: 10.1371/journal.ppat.1005754.

40. Gebhardt T, Wakim LM, Eidsmo L, Reading PC, Heath WR, Carbone FR. Memory T cells in nonlymphoid tissue that provide enhanced local immunity during infection with herpes simplex virus. Nat Immunol 2009; 10(5), 524-30. doi: 10.1038/ni.1718.

41. Mackay LK, Stock AT, Ma JZ, Jones CM, Kent SJ, Mueller SN, et al. Long-lived epithelial immunity by tissue-resident memory T (TRM) cells in the absence of persisting local antigen presentation. Proc Natl Acad Sci U S A 2012; 109(18), 7037-42. doi: 10.1073/pnas.1202288109.

42. Ariotti S, Hogenbirk MA, Dijkgraaf FE, Visser LL, Hoekstra ME, Song JY, et al. T cell memory. Skin-resident memory CD8(+) T cells trigger a state of tissuewide pathogen alert. Science 2014; 346(6205), 101-5. doi: 10.1126/science.1254803.

43. Schenkel JM, Fraser KA, Vezys V, Masopust D. Sensing and alarm function of resident memory CD8(+) T cells. Nat Immunol 2013; 14(5), 509-13. doi: 10.1038/ni.2568.

44. Teijaro JR, Turner D, Pham Q, Wherry EJ, Lefrancois L, Farber DL. Cutting edge: Tissue-retentive lung memory CD4 T cells mediate optimal protection to respiratory virus infection. J Immunol 2011; 187(11), 5510-4. doi: 10.4049/jimmunol.1102243.

45. Wu T, Hu Y, Lee YT, Bouchard KR, Benechet A, Khanna K, et al. Lung-resident memory CD8 T cells (TRM) are indispensable for optimal cross-protection against pulmonary virus infection. J Leukoc Biol 2014; 95(2), 215-24. doi: 10.1189/jlb.0313180.

46. Wakim LM, Smith J, Caminschi I, Lahoud MH, Villadangos JA. Antibody-targeted vaccination to lung dendritic cells generates tissue-resident memory CD8 T cells that are highly protective against influenza virus infection. Mucosal Immunol 2015; 8(5), 1060-71. doi: 10.1038/mi.2014.133.

47. Zens KD, Chen JK, Farber DL. Vaccine-generated lung tissue-resident memory T cells provide heterosubtypic protection to influenza infection. JCI Insight 2016; 1(10), e85832. doi: 10.1172/jci.insight.85832.

48. Zhao J, Zhao J, Mangalam AK, Channappanavar R, Fett C, Meyerholz DK, et al. Airway Memory CD4(+) T Cells Mediate Protective Immunity against Emerging Respiratory Coronaviruses. Immunity 2016; 44(6), 1379-91. doi: 10.1016/j.immuni.2016.05.006.
